PLL FM&AM TRANSMITTER

TELECOM(60)

0000-0000

NEW FM&AM TRANSMITTER

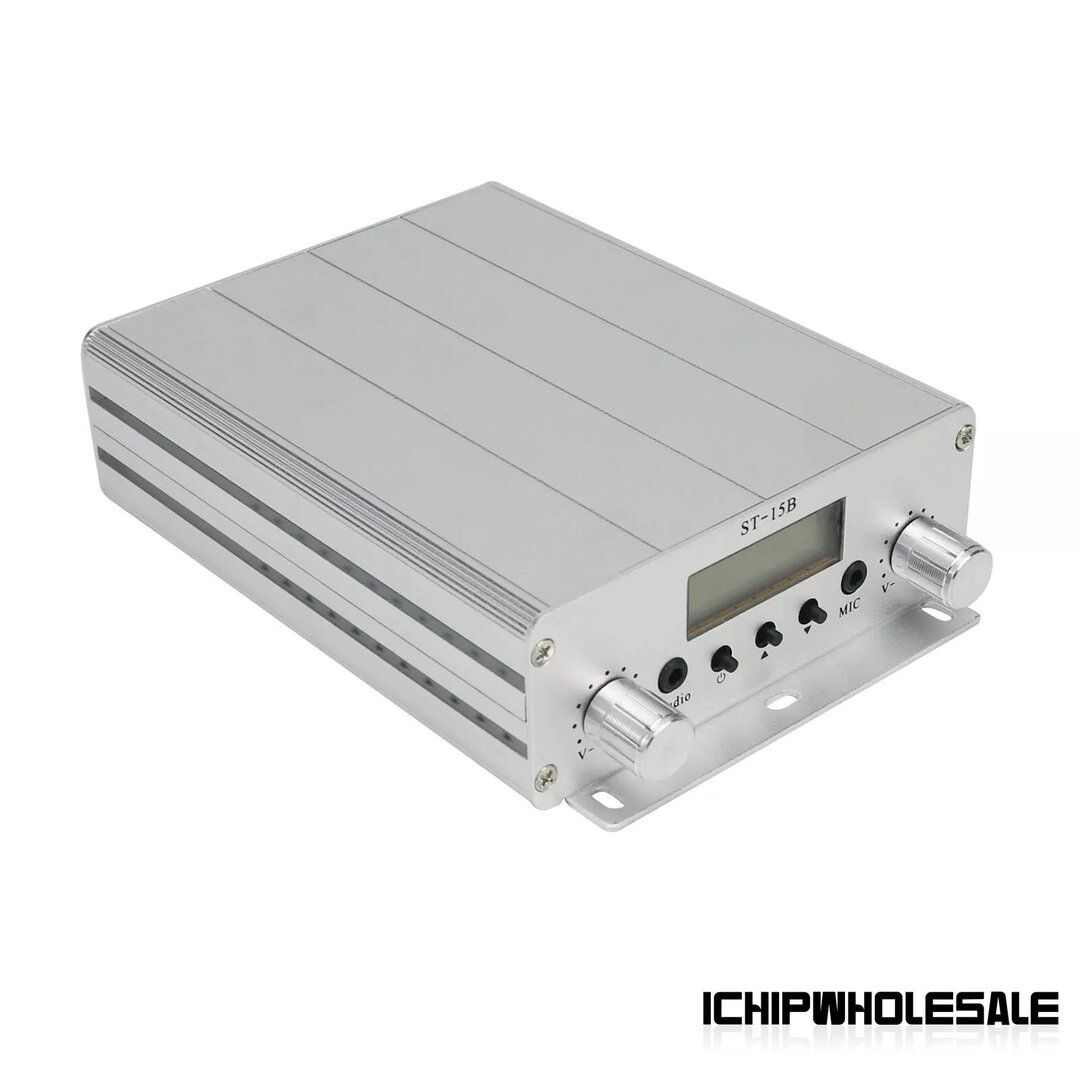

ST-15B
76MHz-113MHz 15W FM Transmitter Stereo PLL Radio TNC Interface with LCD display

Limited availability

(VAT incl.) 155.00 €

0000-0001

NEW FM&AM TRANSMITTER

PLL-FM-ST5-7W
5W 76M-108MHZ stereo PLL FM transmitter suite 7W max power frequency adjustable

Limited availability

(VAT incl.) 90.00 €

0000-0002

NEW FM&AM TRANSMITTER

RFP 250N50
RF Termination Microwave Resistor Dummy Load 250W 50ohms DC-3GHz New

Limited availability

(VAT incl.) 10.00 €

0000-0003

NEW FM&AM TRANSMITTER

ANT-FM-100W
Suitable for FM 88-108MHz LOW POWER TRANSMITION MAX.100W
Designed for Vertical mounted installations.

(VAT incl.) 20.00 €

0000-0004

NEW FM&AM TRANSMITTER

HEATSING-1 26.5x15x6CM(265x150x60mm) ALUMINIUM HEATSING RADIATOR
FOR FM LINEAR AMPLIFIER

Limited availability

(VAT incl.) 90.00 €

0000-0005

NEW FM&AM TRANSMITTER

RFC-1 RFC 2.5mH 175mA FOR AM VALVES TRANSMITTERS

Limited availability

(VAT incl.) 10.00 €

0000-0006

NEW FM&AM TRANSMITTER

FM-LB-88-108MHZ 1000W
0-1000W 88-108MHz 9 pole Low pass filter LPF for FM Broadcast transmitter

Limited availability

(VAT incl.) 80.00 €

0000-0007

NEW FM&AM TRANSMITTER

AM MEDIUM WAVE TRANSMITTERS FROM 300W-4KW

PRE-ORDERS ONLY

This product is unavailable.

(VAT incl.) 0.00 €

0000-0008

NEW FM&AM TRANSMITTER

The 4CX250B/7203 has a maximum plate dissipation rating of 250 watts and a maximum inputpower rating of 500 watts. The 4CX250B/7203 is designed to operate with a heater voltage of 6.0
volts.
Characteristics
Plate Dissipation (Max.) 250 Watts
Screen Dissipation (Max.) 12 Watts
Grid Dissipation (Max.) 2 Watts
Frequency for Max. rating (CW) 500 MHz

(VAT incl.) 80.00 €

SN:0000-0009

NEW FM&AM TRANSMITTER

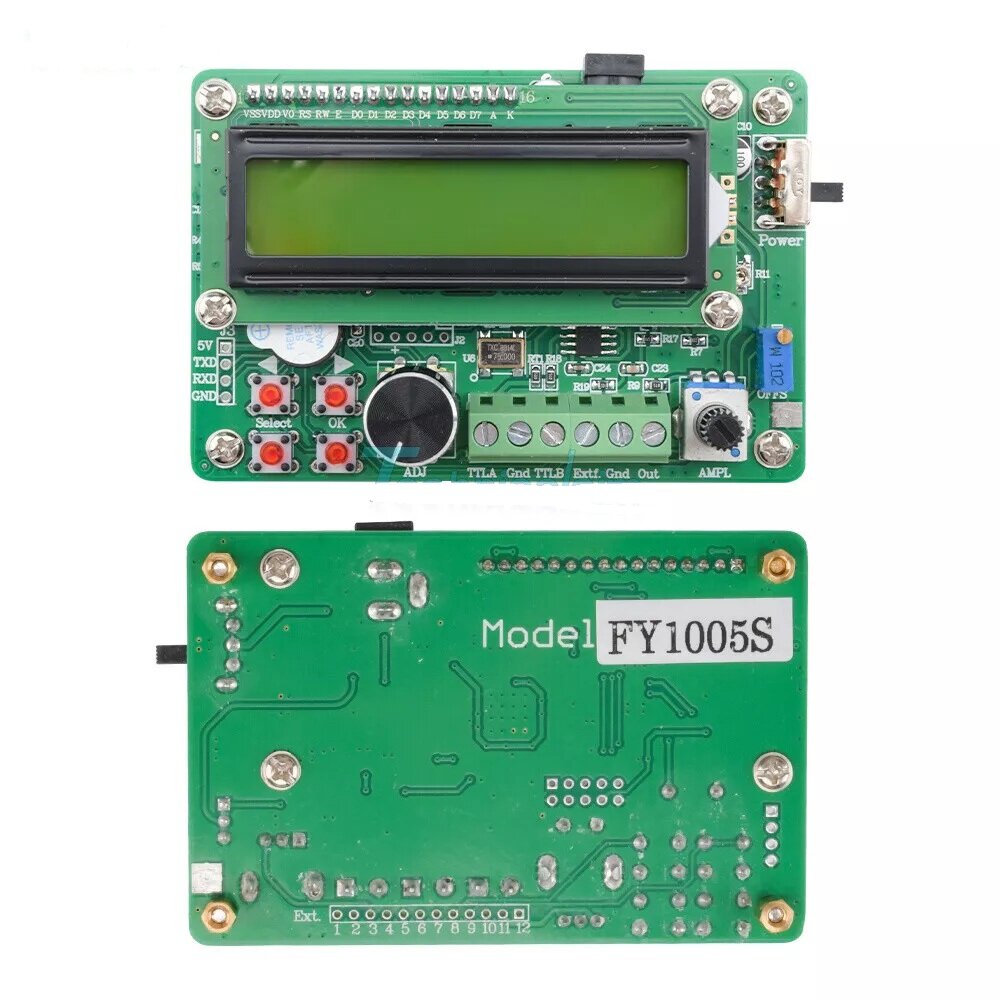

YF1005S DDS 0.01Hz-5MHz Function Signal Generator Module.

Signal Output function :

Output waveforms:Sine wave, Square wave and Triangle wave.
Output amplitude:≥10Vp-p(signal output, no load).
Output impedance:50Ω±10%(signal output).
DC offset:±2.5V(no load).
Display:LCD1602
Frequency range:0.01Hz ~ 5MHz(FY1005).
Resolution:0.01Hz.
Frequency Stability:±1×10-6.
Frequency accuracy:±5×10-6.
Sine wave distortion:≤0.8% (reference frequency is 1kHz).
Trinagle linearity:≥98% (0.01Hz~10kHz).
Rise and fall time of square wave:≤100ns.
Square Wave Duty range:1%~99%.
TTL Output function:

Frequency range:0.01Hz ~ 5MHz(FY1005).
Amplitude:>3Vp-p.
Fan Out:>20 TTL loads.
COUNTER function:

Counter Range:0-4294967295.
Frequency Meter Range:1Hz~60MHz.
Input Voltage Range:0.5Vp-p~20Vp-p.
Storage and transferred: 10 set of parameters with storage and recall functions.
Size:9.5cm x 6.5cm x 3cm - 3.74inch x 2.56inch x 1.18inch.

Limited availability

(VAT incl.) 89.25 €

SN:204-648

NEW FM&AM TRANSMITTER

S-250-12 METAL FRAME POWER SUPPLY 240VAC /12V/21A DC O/P

Limited availability

(VAT incl.) 44.00 €

SN:208-090

NEW FM&AM TRANSMITTER

TS-8 RELAY/TUPE 8-PIN SOCKET(OKTAL)

Limited availability

(VAT incl.) 3.00 €

SN:220-014

HIGH FREQUENCY(RF) CONNECTION

CH-7003A BNC RG58 MALE CRIMP TYPE(MOLDED)

(VAT incl.) 1.70 €

SN:220-015

HIGH FREQUENCY(RF) CONNECTION

CH-7003B BNC RG59 CRIMPING TYPE(MOLDED)

(VAT incl.) 2.38 €

SN:221-012

HIGH FREQUENCY(RF) CONNECTION

V-7304E-T HQ ULTIMAX N-Type connector for RG213 cable

(VAT incl.) 8.00 €

SN:221-013

HIGH FREQUENCY(RF) CONNECTION

V-7301A-T N-CONNECTOR MALE RG58 CRIMP TYPE V-7301A-T

Immediate availability

(VAT incl.) 5.95 €

SN:221-014

HIGH FREQUENCY(RF) CONNECTION

V-7301E-T HQ ULTIMAX N-Type crimp type connector for RG213 cable, teflon

Immediate availability

(VAT incl.) 5.35 €

SN:221-015

HIGH FREQUENCY(RF) CONNECTION

V-7305A-C N CONNECTOR MALE RG58 CLAMP

(VAT incl.) 5.30 €

SN:221-016

NEW FM&AM TRANSMITTER

DL-20-NM DUMMY LOAD 20W N-TYPE MALE

Limited availability

(VAT incl.) 35.70 €

SN:222-001

HIGH FREQUENCY(RF) CONNECTION

CH-7506 ULTIMAX TP2-003 PL259/SO239 MALE WITH TEFLON FOR RG213

(VAT incl.) 3.15 €

SN:222-003

HIGH FREQUENCY(RF) CONNECTION

CH-7511 HLB3411 UHF-TYPE SO239 CHASSIS MOUNTING SOCKET

(VAT incl.) 2.00 €

SN:222-004

HIGH FREQUENCY(RF) CONNECTION

CH-7512 SO239 UHF Female Chassis Socket, Panel Mount Bulkhead Round Hole, PL259

SIMILAR PRODUCT. GO TO: 222-003

This product is unavailable.

(VAT incl.) 2.30 €

SN:222-011

HIGH FREQUENCY(RF) CONNECTION

EW-1861 HQ PL259 UHF-RF Connector for RG58 cable

(VAT incl.) 1.65 €

SN:403-024

NEW FM&AM TRANSMITTER

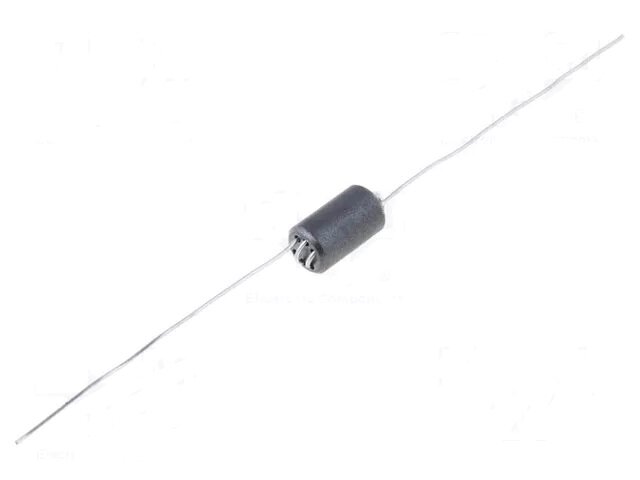

VK-200
RRH6-1-25-K5B R.F.C.Indactor,200mA,suitable RF apparatus

Specification

Manufacturer:RICHCO

Type of inductor:ferrite

Number of coil turns:2.5

Impedance at 25MHz:690Ω

Impedance at 100MHz:680Ω

Number of windings:1

Mounting:THT

Core material:ferromagnetic A5

Body dimensions:Ø6x10mm

Diameter:6mm

Height:10mm

Immediate availability

(VAT incl.) 1.80 €

SN:403-037

NEW FM&AM TRANSMITTER

PRH-105-55-200 FERRITE SLEEVE L:20mm,Φint5.5mm,Φout10.5mm
Specification

Manufacturer:RICHCO

Type of ferrite:sleeve

Length:20mm

Internal diameter:5.5mm

Outside diameter:10.5mm

Core material:ferromagnetic A5

Impedance at 25MHz:95Ω

Ferrite features:reduce electromagnetic interference

Impedance at 100MHz:138Ω

Immediate availability

(VAT incl.) 2.50 €

SN:403-038

NEW FM&AM TRANSMITTER

RT-159-79-143 FERRITE TOROIDAL L:14.mm,Φint7.8mm,Φout15.8m

Specification
Manufacturer:RICHCO

Type of ferrite:toroidal

Length:14.27mm

Internal diameter:7.87mm

Outside diameter:15.88mm

Core material:K5B

Impedance at 25MHz:79Ω

Ferrite features:rounded edges

Impedance at 100MHz:121Ω

Immediate availability

(VAT incl.) 2.40 €

SN:403-039

NEW FM&AM TRANSMITTER

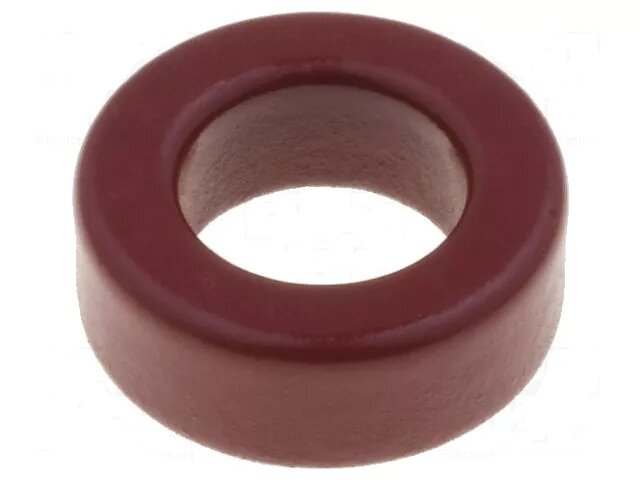

T50-2 FERRITE TOROIDAL L:4.83.mm,Φint7.7mm,Φout12.7mm,4.9nH

Specification

Manufacturer:MICROMETALS

Type of ferrite:toroidal

Length:4.83mm

Internal diameter:7.7mm

Outside diameter:12.7mm

Core material:iron powder

Inductance factor Al:4.9nH

Immediate availability

(VAT incl.) 2.50 €
