TRANSISTOR

SN:108-003

TRANSISTORS

BLY88 RF TRANSISTOR 13.5V/175MHz/15W

32.00 €(VAT incl.)

Add

SN:108-006

TRANSISTORS

BFQ34 NPN 4GHz/2.2W RF TRANSISTOR
NPN 4 GHz wideband transistor

DESCRIPTION

18V/2.2W
NPN transistor encapsulated in a 4
lead SOT122A envelope with a
ceramic cap. All leads are isolated
from the stud.
It is primarily intended for driver and
final stages in MATV system
amplifiers. It is also suitable for use in
low power band IV and V equipment.
Diffused emitter-ballasting resistors
and the application of gold sandwich
metallization ensure an optimum
temperature profile and excellent
reliability properties. The device also
features high output voltage
capabilities.

29.90 €(VAT incl.)

Add

SN:108-007

TRANSISTORS

BFQ68 NPN 4GHz /4.5W RF TRANSISTOR
BFQ68 NPN 4GHz /4.5W RF TRANSISTOR

NPN 4 GHz wideband transistor

DESCRIPTION

18V/4.5W
NPN transistor encapsulated in a 4
lead SOT122A envelope with a
ceramic cap. All leads are isolated
from the stud.
It is primarily intended for driver and
final stages in MATV system
amplifiers. It is also suitable for use in
low power band IV and V equipment.
Diffused emitter-ballasting resistors
and the application of gold sandwich
metallization ensure an optimum
temperature profile and excellent
reliability properties. The device also
features high output voltage
capabilities.

37.00 €(VAT incl.)

Add

SN:108-009

TRANSISTORS

BGY36 VHF 20W POWER AMPLIFIER MODULE
VHF power amplifier module
Minimum frequency:144 MHz
Maximum frequency:174 MHz
Supply voltage:12.5 V
Input power:150 mW
Output power:20 W
Mode of operation:CW/FM
Max. frequency band: 140 - 180 MHz, output 16W

118.00 €(VAT incl.)

Add

SN:111-009

TRANSISTORS

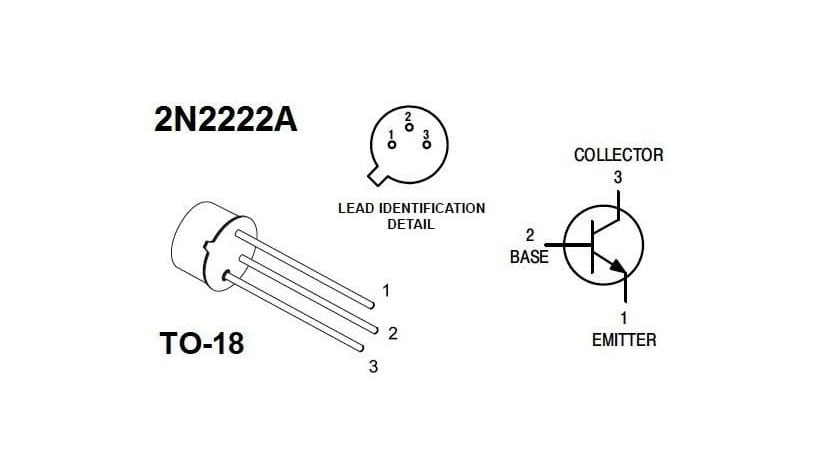

2N2222A TRS NPN; bipolar; 40V; 0.6A

2N2222A Transistor: NPN; bipolar; 40V; 0.6A; 625mW; TO92

0.45 €(VAT incl.)

Add

SN:111-014

TRANSISTORS

2N2907A TRS PNP; bipolar; 60V; 0.6A

2N2907A Transistor: PNP; bipolar; 60V; 0.6A; 625mW; TO92

0.55 €(VAT incl.)

Add

SN:111-018

TRANSISTORS

2N3055 NPN POWER TRANSISTOR TO-3
2N3055 TRANSISTOR SI-NPN 100V 15A 115W 800KHZ

Transistor type: NPN
Polarisation: bipolar
Collector-emitter voltage: 100V
Collector current: 15A
Power: 115W
Case: TO3

3.50 €(VAT incl.)

Add

SN:111-070

TRANSISTORS

MRF247 VHF 75W POWER TRANSISTOR
MRF247 VHF POWER TRANSISTOR
Polarity: NPN
Output power: 75 W
Dissipated power (Ptot): 250 W
Collector current (Ic max): 20 A
Collector-emitter voltage (Vce max): 18 V
Supply voltage: 12.5 V
Mounting or package:flange
Frequency bands: VHF
CASE:316-01

26.00 €(VAT incl.)

Add
